3 & 5 Ribbed outer surface form
• Plain or Striped sheet surface
• Plate surface is painted galvanized sheet, inner surface is perforated painted galvanized sheet
• Both horizontal and vertical applicability
• Joint detail that hides the screwing system
• Sound insulation and acoustic improvement
• Inflammability class according to TS EN 13501-1, A2-s1; d0
• Production flexibility in desired length between 3 m and 8 m
•  According to TS EN 14509, the heat transmission coefficient U value is between 0.77 - 0.24 W/m2K according to the panel thickness
• Excellent sound insulation for Roof, Facade as well as Indoor applications
•  Building material class A2-s1; d0 certified according to EN 14509 – non-flammable
Production options up to 10 meters
Sound absorption degree  αW = 0,85
Sound insulation: up to 34 dB Insulation core A1

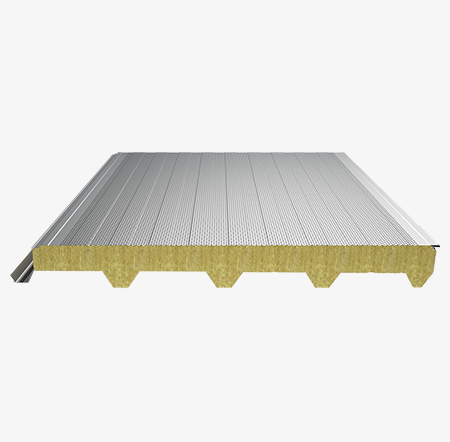

Standard Acoustic Roof and Wall Panel
 Secret Fix Acoustic Roof and Wall Panel
Can be used indoors
Production in different color options
Both vertical and horizontal assembly possible

Acoustic Panel Sound Absorption Coefficient Values :

Frequency (Hz) No Sound Absorbing Surface  There Is Sound Absorption Surface Sound Absorption Coefficient (Αp)
100 3,86 3,71 0,04
125 7,07 5,05 0,2
160 7,08 5,38 0,16
200 7,78 5,84 0,15
250 8,89 6,41 0,16
315 9,12 6,24 0,18
400 8,11 5,55 0,20
500 8,17 5,54 0,21
630 8,46 6,27 0,15
800 7,96 6,48 0,11
1000 7,40 6,47 0,08
1250 6,92 5,95 0,09
1600 6,56 5,67 0,10
2000 5,68 5,19 0,07
2500 4,95 4,62 0,07
3150 3,86 3,81 0,04
4000 3,18 3,22 0,03
5000 2,50 2,54 0,05
