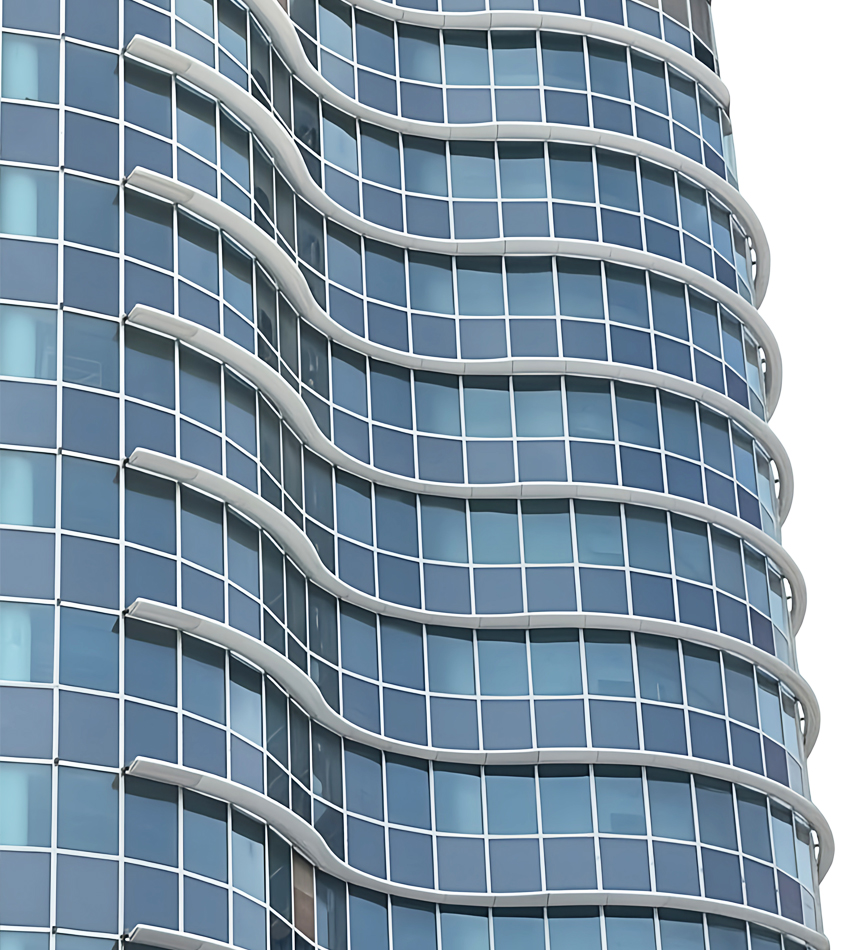

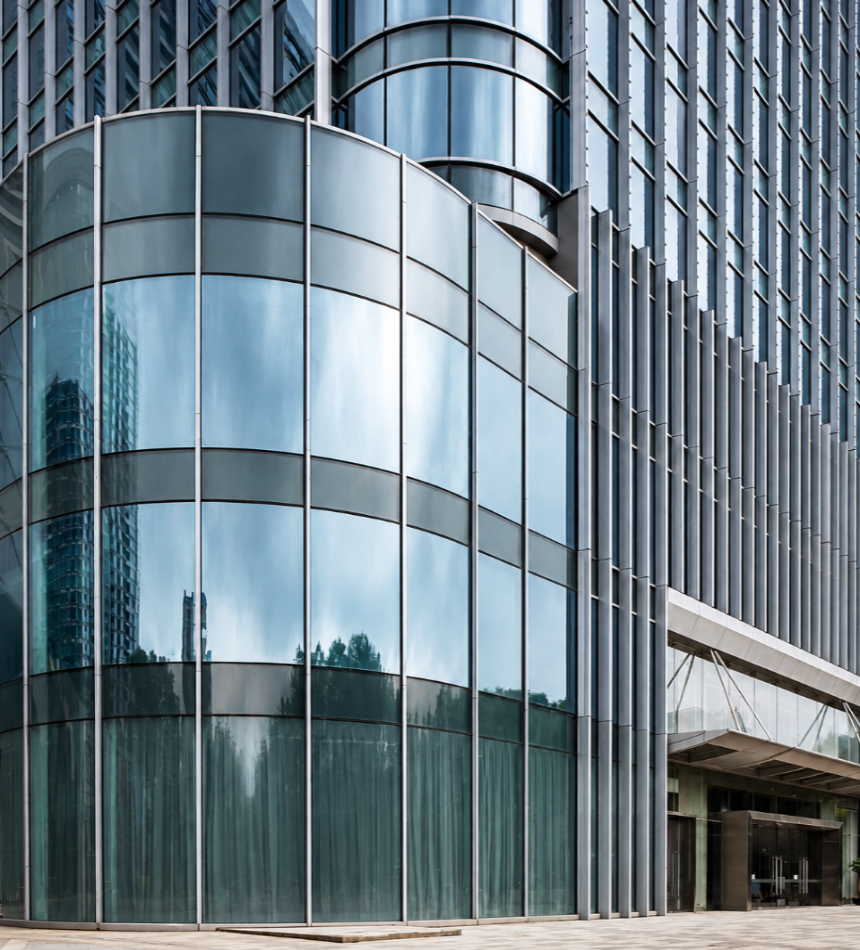

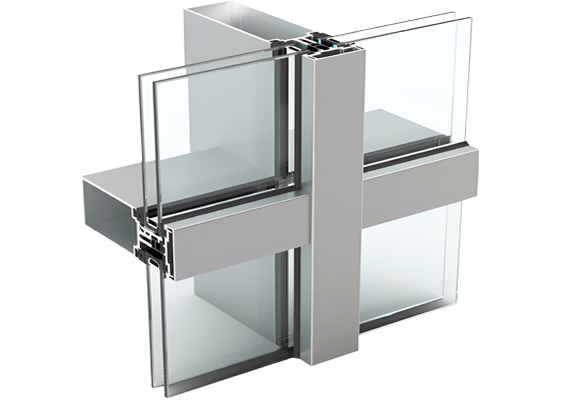

Stick curtain wall systems are facade systems made by combining aluminum, steel and glass. Factory assembled and ready to install, curtain wall systems offer the advantage of faster installation, improved product quality and lower installation costs. The system is available in a variety of stud depths combined with various thermal insulation options, including an enhanced thermal performance option, and the aesthetic outer cover allows design flexibility for the specifier to make their own statement. The system has outstanding performance and the ease of installation makes it possible to suit individual project requirements.
Integrated unit types:
Different window and door systems;
Integrated facade windows with different opening types;
Openable hidden sash window
Smoke doors.
TECHNICIAL SPECIFICATIONS
• Visible Profile width is 50 mm / 54 mm (Project suitable profile options other than standard sizes.)
• Maximum air and water discharge performance thanks to the drainage (condensate) channel
• Maximum building height of 100 meters
• Steel reinforced vertical and horizontal carrier profile
• Long life thanks to all wicks being EPDM
• Aluminum profile thickness1.6 mm / 1.8 / mm / 2 mm / 2 mm and 3 mm
• Uninterrupted glass view on building facades with glass holder cassettes
• Glass facade integrity with silicone bonding process
• Electrostatic painted (RAL) and anodized application in desired color
• Heat and sound insulation at the highest level,
• Manufacturing and assembly convenience.
• Glazing up to max 40 mm.
• Thermal insulation bar 14,8
